1/8 Scan Outdoor P5 Full Color Led Display Module
Key Features
Our full color led display module is suitable for all kinds of outdoor led advertising wall/billboard.Back maintenance,front maintenance and clamshell maintenance make your job easier
-
P4,P5,P6,P8,P10 available
-
High brightness,IP65 waterproof rate
-
Clear and wide LED display
-
Excellent visibility from far
-
Two years warranty
Parameter
You can choose the product you want according to the following parameters
| Pixel pitch | 3mm | 4mm | 5mm | | Led lamp | SMD 1921 | SMD 1921 | SMD 2727 | | Module size | 192*192mm | 256*128mm | 320*160mm | | 320*160mm | | Scan method | 1/16 S | 1/8 S | 1/8 S | | 1/10 S | | Brightness | 5000cd/sqm | >=6500cd/sqm | >=6500cd/sqm | | Pixel density | 111111dots/sqm | 62500dots/sqm | 40000dots/sqm | | Panel material | Iron cabinet | Iron cabinet | Iron cabinet | | Panel size | 576*576mm | 768*768mm | 960*960mm | | 960*960mm | 960*960mm | | Average power consumption | 400w/sqm | 650w/sqm | 650w/sqm | | Max power consumption | 800w/sqm | 1000w/sqm | 1000w/sqm | | Best view distance | 3-30m | 4-47m | 5-50m | | Gray level | 12-4bit | | View angle | H≧140° V≧140° | | Refresh rate | ≧1920 Hz ≧3840 Hz | | Protection level | IP65 | | Control system | Linsn/Colorlight/Novastar | | Frame frequency | ≧50/60 Hz | | Input voltage | 100-120V 200-240V | | Screen life | 100000h | |
What is LED Display Module?
Module size:320*160mm
Pixel density:64*32dots/sqm
Main feartures:
Ultra bright flux
Low thermal resistance
Compact design

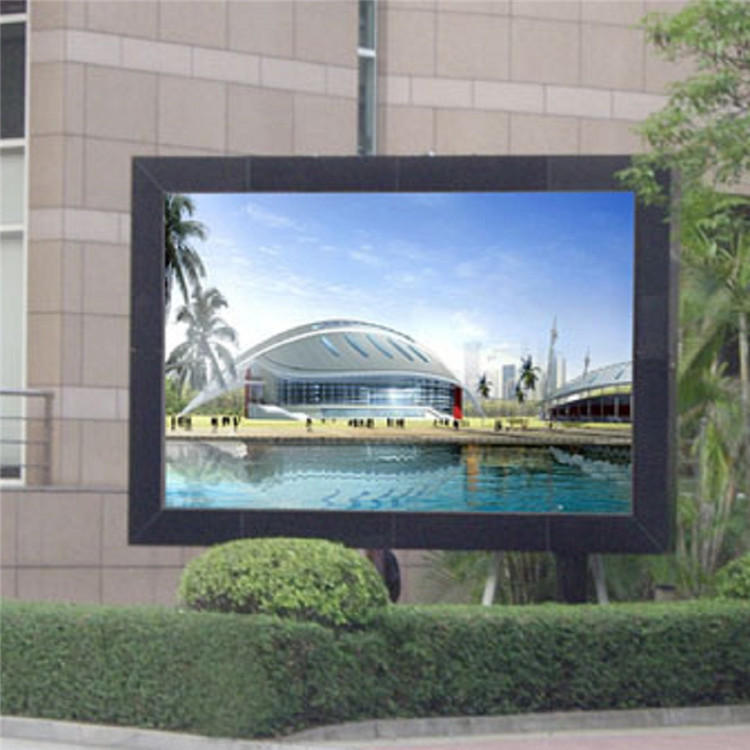

Application of P5 Outdoor LED Display Module
Application of P5 outdoor led display module is very wide.Fixed on the wall of shopping mall,street billboard,highway advertising,roadside advertising,station advertising,etc
Control method
PC/Wlan/4G/Wifi/USB control,various control methods can help edit a better video or image
Installation of P5 Outdoor LED Display Module
Easy to mount onto the wall and convenient to remove it when necessary
Why choose our P5 Outdoor LED Display Module?
In order to make continuous progress and provide better products,we have been looking for shortcomings and advantages through comparison
